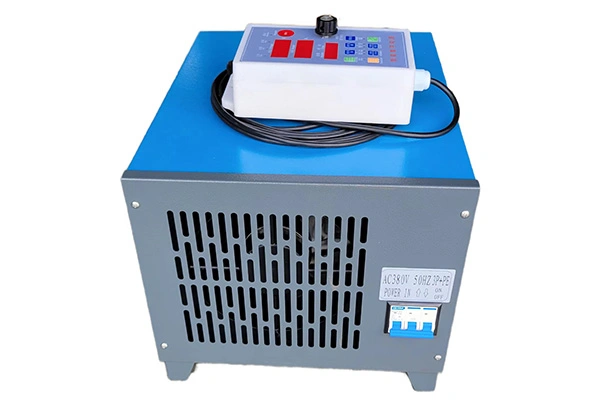

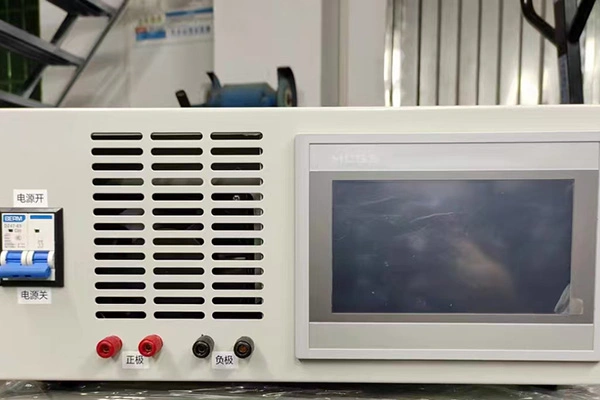

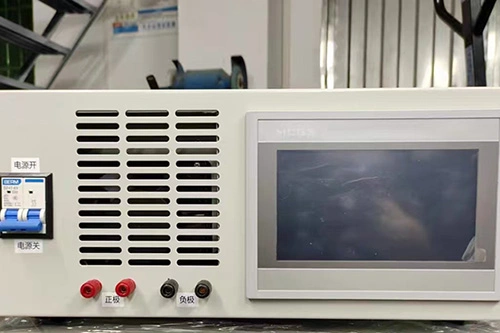

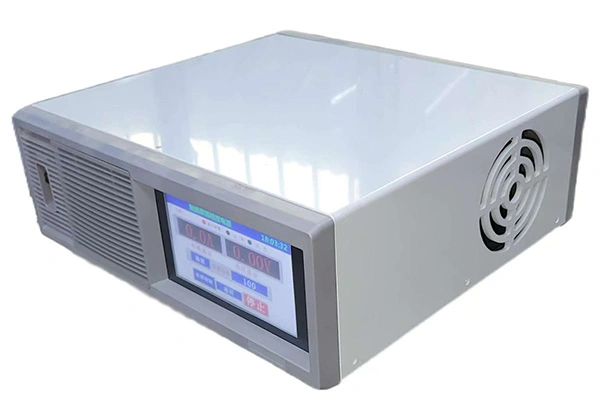

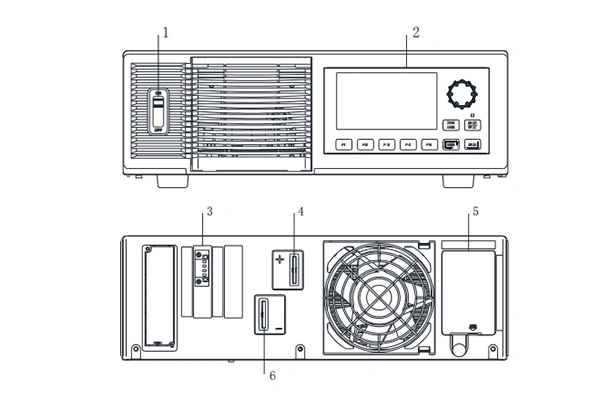

Pulse Plating Rectifier
The pulse plating rectifier is an advanced surface finishing power solution developed based on cutting-edge high-frequency switching power supply technology. This periodic reverse pulse power supply features an integrated SDD (DC) commutation function, offering a versatile range of waveform outputs including forward/reverse pulse, pure DC, sine-wave, and single pulse. This high-precision waveform generator is engineered to meet critical industrial needs such as electrolytic coloring, eliminating the hydrogen embrittlement effect, and dramatically refining grain structure.
Advanced Technical Applications
This dual-pulse electroplating modulator is specifically optimized for high-end metallization processes across several highly demanding industries:
- Precious Metal Deposition: High-uniformity plating of gold, silver, nickel, and tin.
- Semiconductor & Electronics: Surface treatment of semiconductor lead frames, high-density connectors, contact pins, and micrometer-scale precision circuit patterns.
- Advanced PCB Manufacturing: Copper deposition for rigid multi-layer boards, microwave circuit boards, high-aspect-ratio plated through-holes (PTH), microvias, and deep-blind vias.
- Specialized Applications: Industrial iron plating and advanced scientific electrochemical research.
Technical Specifications
Environmental & Operational Conditions
- Operating Temperature: 0 – 40°C
- Ambient Humidity: 20% to 90% (Non-condensing)
- Cooling Method: Forced air cooling
Waveform & Dynamic Control
- Waveform Versatility: Forward/reverse pulse, single pulse, DC, and sine-wave.
- Full-Wave Frequency Range: 5 – 500Hz
- Pulse On/Off Duty Timing: 1 – 9999ms (Independently adjustable for both positive and negative cycles)
- Soft-Start Duration : 0 – 999.9 seconds (Configurable for substrate protection)
Main Power Metrics
- Input Options: Three-phase AC 380V ±10% at 50Hz for heavy-duty lines; Single-phase AC 220V ±10% for low-power pilot setups.
- Power Factor: ≥0.95, providing substantial energy conservation and lower carbon emissions.
- Output Voltage: DC 0–12V / 0–15V / 0–24V (Continuously adjustable across the complete envelope).
- Output Current: 100A – 30,000A standalone (Customizable; multi-cabinet parallel configurations support capacities up to 100kA+).
- Output Power: 1kW to 1MW+ per standalone system, bridging lab trials to high-volume fabrication lines.
- Electrical Efficiency: ≥83% (Calibrated at a typical 12V / 50A operating point).
Regulation Accuracy & Stabilization
- Output Ripple RMS ≤5% (During pure DC mode); high-end high-frequency configurations achieve a ripple factor down to <0.5% to 1%.
- DC Mode Stabilization Accuracy:
- Constant Current (CC): ≤1% × Iout-max (Valid when Iout ≥ 10% × Iout-max)
- Constant Voltage (CV): ≤1% × Vout-max (Valid when Vout ≥ 10% × Vout-max) - Pulse Mode Stabilization Accuracy:
- Constant Current (CC): ≤3% × Iout-max (Valid when Iout ≥ 10% × Iout-max)
- Constant Voltage (CV): ≤3% × Vout-max (Valid when Vout ≥ 10% × Vout-max) - Rated Load Accuracy: Within ±0.5% to 1% under full load conditions.
