Rack Plating Line

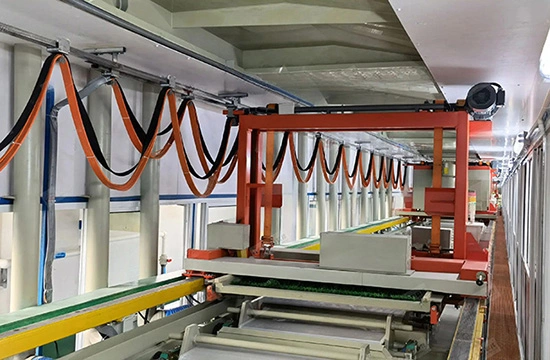

Automated Rack Plating Line (Overhead Hoist)
The automated rack plating line (overhead hoist) is the core equipment for automated rack plating processes. It is widely utilized for the surface treatment of metal products, including hardware stampings, fasteners, turned parts, automotive components, and electronic devices.
More Info

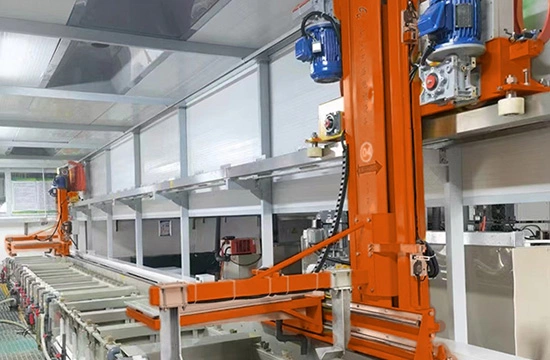

Automated Rack Plating Line (Sidearm Hoist)
The automated rack plating line (sidearm hoist), also known as a cantilever plating line, is a flexible automated solution for surface treatment. Unlike the overhead gantry structure, the hoist mechanism is supported from one side of the tanks.
More Info

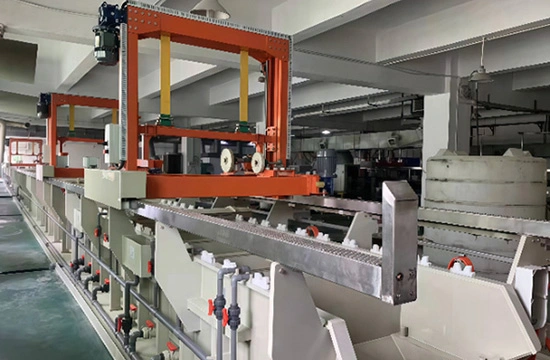

Semi-Auto Rack Plating Line
The semi-automatic rack plating line is a core piece of equipment in the electroplating industry that balances automated efficiency with manual flexibility.
More Info

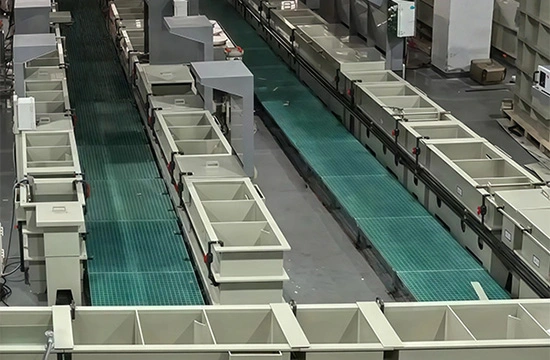

Manual Rack Plating Line
The manual rack plating line is a fundamental electroplating system characterized by its high operational flexibility, low investment cost, and strong adaptability.
More InfoThe rack plating line utilizes electrolytic principles to deposit metal or alloy layers onto workpieces. In this process, components are independently suspended on conductive racks and submerged into electrolytes containing metal ions. This method offers distinct industrial advantages:
- Surface Integrity Protection: Independent suspension prevents workpieces from colliding, effectively avoiding surface damage or scratches on delicate parts.
- Superior Precision & Control: Ensures uniform current distribution and controllable coating thickness, meeting the rigorous standards required for intricate geometries.
- Broad Material Compatibility: Ideal for high-end processes including gold, silver, nickel, copper, and tin plating, as well as specialized plastic plating.
The system is widely deployed in sectors requiring extreme precision and reliability:
- Aerospace & Defense: Military equipment, aerospace electronics, and aerospace-grade hardware.
- Advanced Electronics: Semiconductor devices, HTCC/DPC substrates, ceramic packages, and optical components.
- Automotive & Energy: New energy vehicle parts and high-performance automotive components.
(Example: Zinc Plating Line)
| Parameter | Specifications / Range |
| Tank Dimensions | Customizable: L (0.5–3m) × W (0.5–5m) × H (0.8–3m) |
| Tank Material | High-quality PP (Polypropylene) |
| Rectifier Power | 50A – 15,000A / 1–15V |
| Operating Temperature | 15 – 20℃ |
| Core Process Flow | Pre-treatment: (Thermal degreasing → Electrolytic degreasing → Rust removal) → Plating: (Pre-soaking → Electroplating) → Post-treatment: (Polishing → Passivation → Sealing) |
