Automated Plating System for Electronic Parts
Electronic electroplating is a highly specialized branch of surface treatment dedicated to electronic micro-components and semiconductor packaging. It represents a critical benchmark of technological capability within the modern microelectronics manufacturing chain. Unlike traditional decorative or heavy-duty industrial anti-rust plating, electronic electroplating demands atomic-scale thickness control, ultra-low impurity tolerances, and flawless electrical conductivity.
From copper Damascene interconnect plating on silicon chips and micro-bump electrodeposition in advanced packaging, to lead frame surface finishing, printed circuit board (PCB) via-metallization, and high-density connector pin plating, this technology underpins the entire microelectronics sector. It continues to expand alongside innovations in Micro-Electro-Mechanical Systems (MEMS) and micro-sensors.

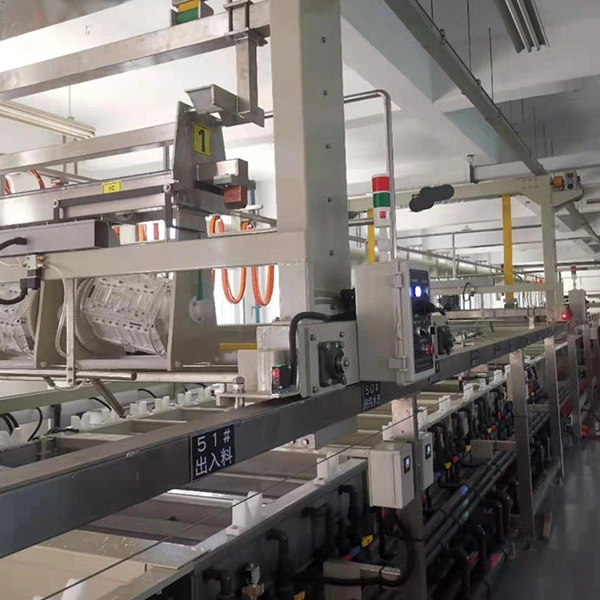

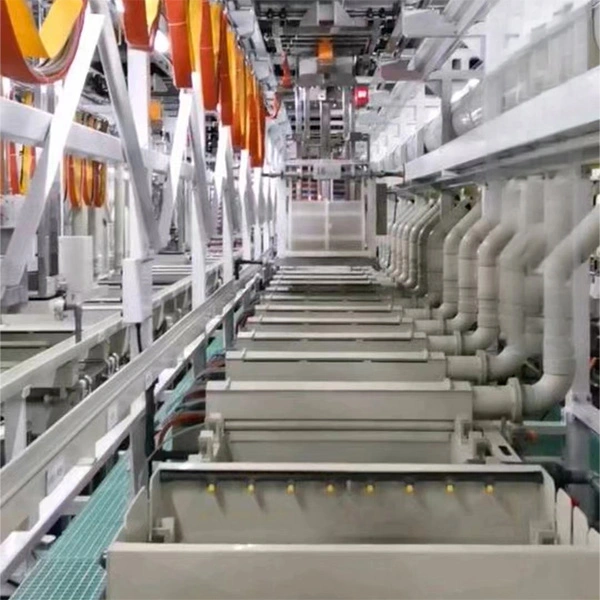

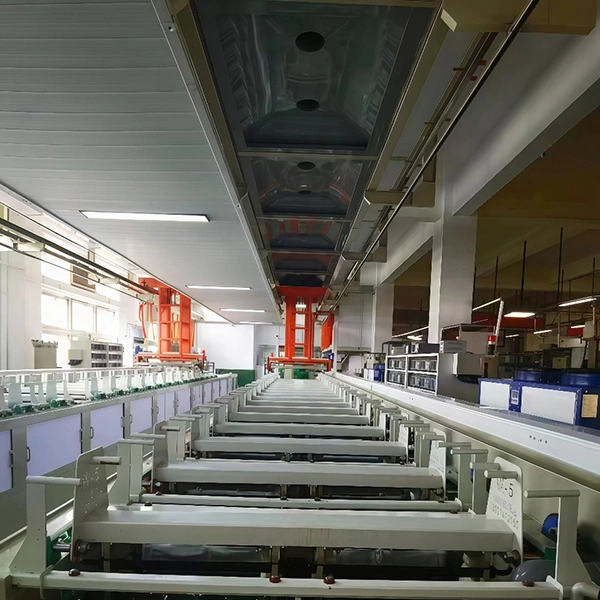

Barrel Plating Line for Electronics
The gantry-type precision electronic component barrel plating line is a fully automated, high-accuracy processing infrastructure engineered exclusively for miniature, fragile, and high-value electronic hardware. The system utilizes heavy-duty overhead gantry hoists to execute precise barrel transport, lifting, and multi-tank process switching.
To safeguard tiny electronic components against mechanical damage, the customized barrels feature advanced high-precision, non-scratch insulating mesh perforations. Paired with variable-frequency stepless velocity control (VFD), the system ensures that components tumble smoothly without physical impacts or micro-scratching, delivering exceptionally stable electrical conduction and ultra-uniform coating thickness distribution.
- Bulk Standard Hardware: Mass-volume, high-standard barrel finishing of small hardware, precision fasteners, standard bolts, and washers.
- Avionics & Automotive Electronics: High-throughput processing of electronic contact pins, terminals, automotive connectors, and miniature structural fittings.
- Large-Scale Coating Facilities: Ideal for mid-to-large surface treatment enterprises targeting massive scaling, with daily processing capacities reaching or exceeding 10,000 kg.
- Precision Micro-Electronics: Delivers highly stable, repeatable tin, nickel, gold, and silver electrodeposition profiles tailored for bulk micro-components, including chip inductors, multi-layer ceramic capacitors (MLCC), micro-connectors, and semiconductor lead frames.
This digitized surface treatment infrastructure incorporates multiple high-performance modules:
- Automation Matrix: High-speed overhead gantry cranes integrated with industrial PLC centralized control systems.
- Anti-Damage Processing Hardware: Heavy-duty, acid-alkali resistant chemical tanks paired with premium precision acrylic anti-scratch plating barrels.
- Smart Support Ecosystem: High-frequency low-ripple switching rectifiers, precision chemical solution filters, automatic thermal management loops, and an intelligent inline chemical analytical auto-dosing module for data-driven process traceability.
The production line utilizes automated gantry hoists to continuously execute barrel transport, lifting, tank immersion, and step-by-step recipe switching under a completely unmanned operational environment. As the processing barrels rotate at a perfectly calibrated, constant velocity, bulk micro-components achieve uniform exposure to the electrical field. This constant, gentle motion guarantees excellent coating consistency, high volumetric output, rock-solid operational stability, and minimal labor overhead.
