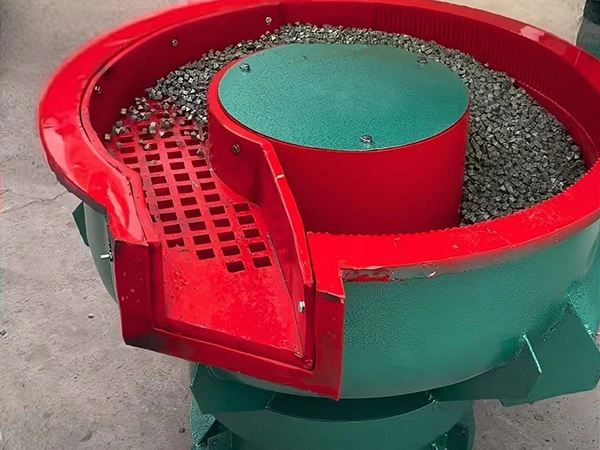

Vibratory Deburring Machine, Vibratory Tumbler
The industrial degreasing & surface finishing equipment is a specialized line of hardware engineered to eliminate mineral oils, animal/vegetable fats, emulsified lubricants, embedded dust, and machining debris from workpiece surfaces through mechanical, chemical, or electrochemical actions.
As a critical foundational system for surface pretreatment, this vibratory deburring machine prepares metallic substrates for subsequent high-precision processes such as electroplating, powder coating, and welding. By thoroughly removing contaminants, it guarantees optimal coating adhesion and bonding strength, preventing surface peeling or blistering in the finished product.
| Equipment Name | Load Capacity | Baseline Functionality) | Ideal Process Application |

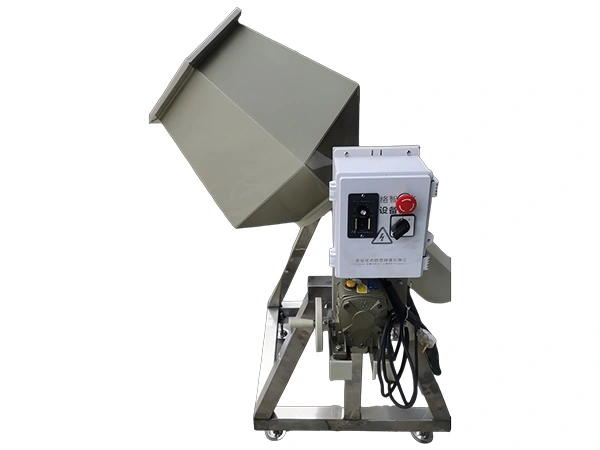

| Tilting Barrel Degreaser | 3 – 5 kg | Integrated control panel supporting forward/reverse rotation, variable speed tuning, manual joystick tilting, and an ergonomic drum design for effortless loading/unloading. | Specifically engineered for small-batch part washing, heavy-duty oil stripping, and surface burnishing/polishing. |

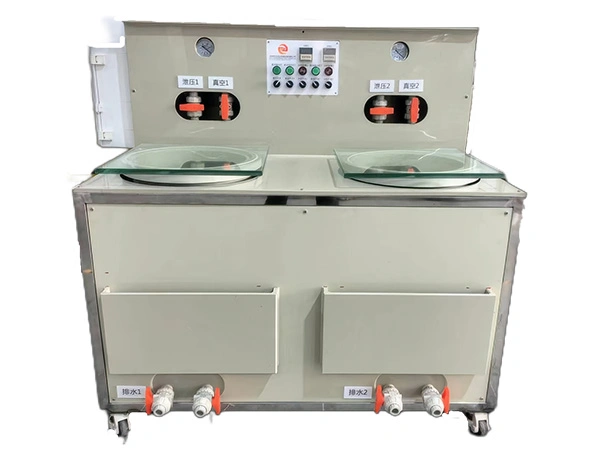

| Vacuum Degreasing Machine | Single-Station: 3–5 kg Dual-Station: 5–10 kg Three-Station: 10–15 kg Four-Station: 15–20 kg | Combines high-vacuum sealed chambers with synchronous vibratory agitation. Vacuum Pump: 1.5 kW / 2.2 kW. Vacuum Depth: -0.08 to -0.1 Pa. | Optimized for high-precision components with deep blind holes or complex internal micro-channels. It rapidly evacuates air pockets, forcing the chemical solution to completely flood micro-structures under a stable negative pressure environment. |

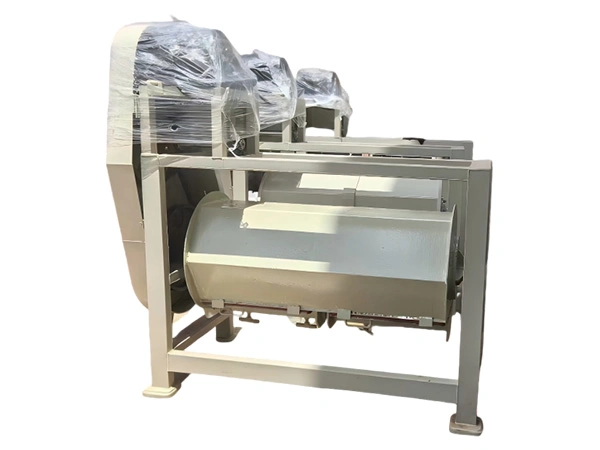

| Rotary Drum Degreaser | 50 – 150 kg | Adjustable drum rotational velocity from 15 to 45 r/min, supporting automated forward/reverse cycle switching. Drum metallurgy options: Heavy-duty PP, SUS304, or SUS316 stainless steel. | Engineered for high-capacity, bulk-batch degreasing of small industrial hardware, structural fasteners, and standard machined components. |
Iron Parts
Rust Removal & Heavy-Duty Deburring
Brass Parts
Micro-Deburring & High-Gloss Polishing
Heat-Treated Parts
Scale Elimination & Brightening
Aluminum Alloys
Cutting Oil Stripping & Burnishing
