Vibratory Plating Unit
The vibratory plating unit (formally known as a vibratory electroplating machine or precision micro-component plating system) is a highly specialized finishing equipment dedicated to the surface treatment of ultra-small, fragile, and high-precision components. Positioned as a revolutionary alternative to traditional barrel plating, this technology utilizes high-frequency, multi-axis mechanical vibration instead of rotational tumbling to achieve exceptional coating uniformity. It is heavily relied upon in the high-end electronics, semiconductor, and medical hardware sectors where traditional barrel tumbling cause’s part deformation or overlapping.

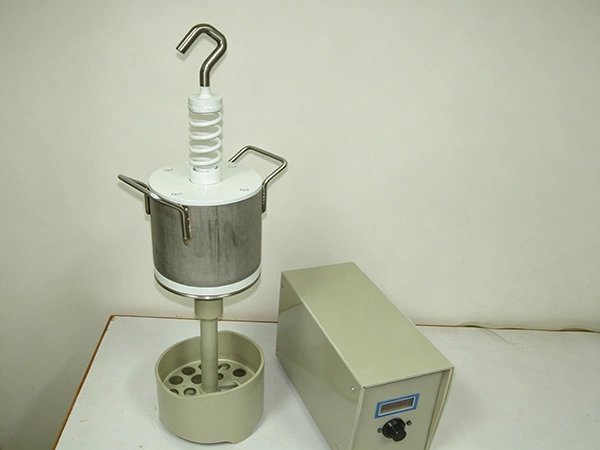

The electroplating process within this vibratory barrel alternative relies on the precise synchronization between a specialized open-top vibratory bowl (screen) and a high-performance exciter drive:

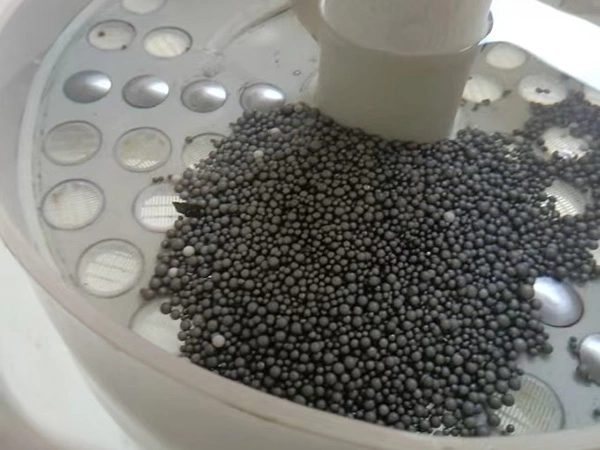

- Material Loading: The open-top vibratory bowl acts as the loading enclosure. Its center is mechanically coupled to the exciter via a transmission shaft, creating an optimized annular (ring-shaped) track along the bowl walls where the micro-components are placed.
- Electrical Contact: During operation, the bowl is fully submerged in the electrolyte. Due to their own gravity, the workpieces maintain continuous, reliable electrical contact with cathode pins embedded directly into the bottom of the bowl.
- Multi-Axis Kinematics: Upon receiving signals from the frequency-stabilized vibration power source, the exciter drives the bowl into a complex three-dimensional (3D) and horizontal oscillating motion.

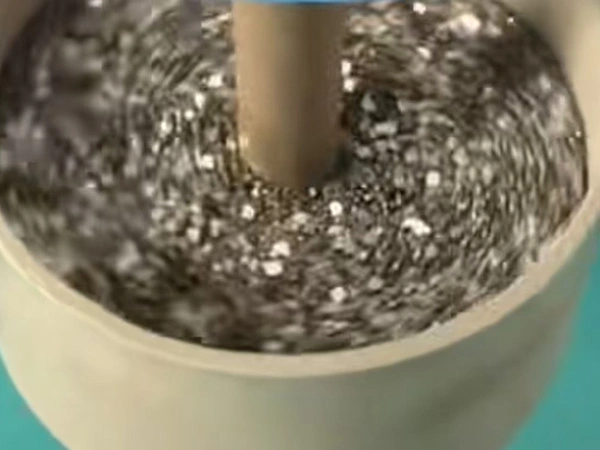

- Uniform Deposition: The varied vibration amplitudes across different sections of the bowl force the micro-components to simultaneously execute independent rotation (spinning) and orbital revolution around the track. This continuous, gentle movement guarantees that every part receives an identical current density, delivering a flawless and uniform plated layer.

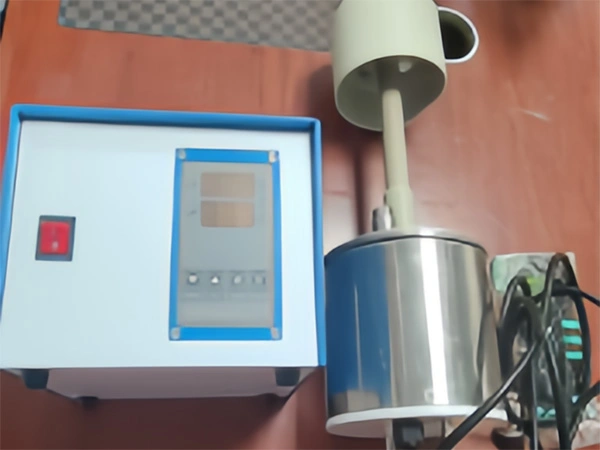

Our automated vibratory finishing stations feature customizable options to match various processing scales:
- Vibration Frequency: 10 Hz to 60 Hz (Stepless variable frequency regulation / VFD controlled).
- Vibratory Bowl Sizes: Standard configurations include diameters of φ15, φ18, φ20, φ25, and φ30 (Custom envelope dimensions available).
- Operating Voltage: DC 12V / 24V compatibility.
- Product Adaptability: A comprehensive array of bowl models, volumetric sizes, and customized internal geometries are available to meet the strict handling requirements of diverse electronic and hardware geometries.
