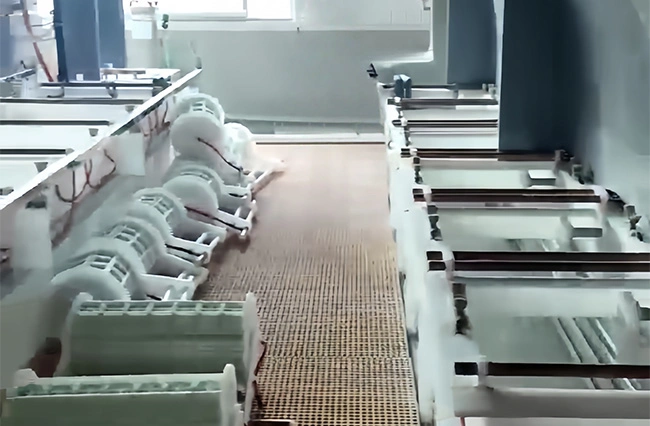

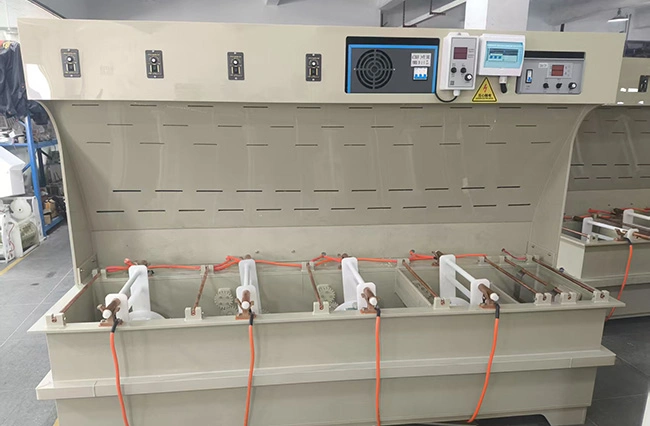

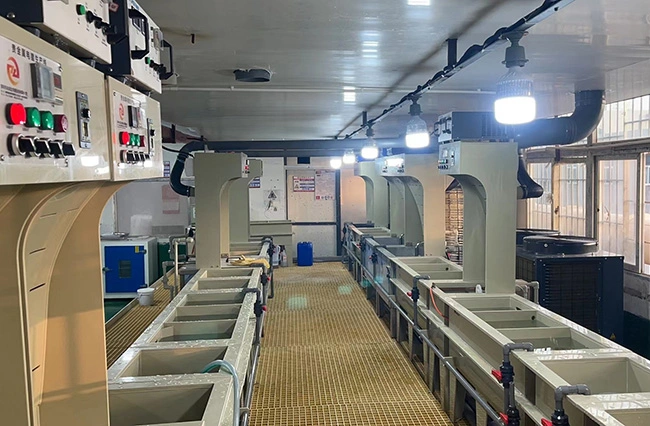

Manual Barrel Plating Line

Watch Video

The manual barrel plating line is a fundamental, entry-level surface treatment solution designed for maximum simplicity. This manual tumbling station relies on human operation for barrel transfer and process transitions, offering a straightforward mechanical structure with minimal capital investment. Requiring only basic training for operators, this entry-level plating setup has zero restrictions on workshop site conditions and can be deployed in almost any industrial environment.

This compact finishing bench consists of standardized essential modules:

• Processing Tanks: Robust units engineered for manual dipping and rinsing.
• Manual Barrel Units: Simple yet reliable rotating hardware for small part agitation.
• Baseline Control & Power: Includes a simplified control interface, high-frequency rectifiers, and chemical filtration units.
• Modular Design: All components are standard-specification, allowing for rapid installation and high flexibility for layout reconfigurations.

This compact plating equipment is highly recommended for specific manufacturing needs:

• Small-Batch Hardware: Ideal for the surface treatment of small metal components in limited quantities.
• Prototyping & Sampling: A baseline requirement for R&D labs and sampling workshops to test plating formulas.
• Precious Metal Finishing: Perfectly suited for high-value barrel plating of gold, silver, and palladium, where precise manual control over immersion time is critical.
