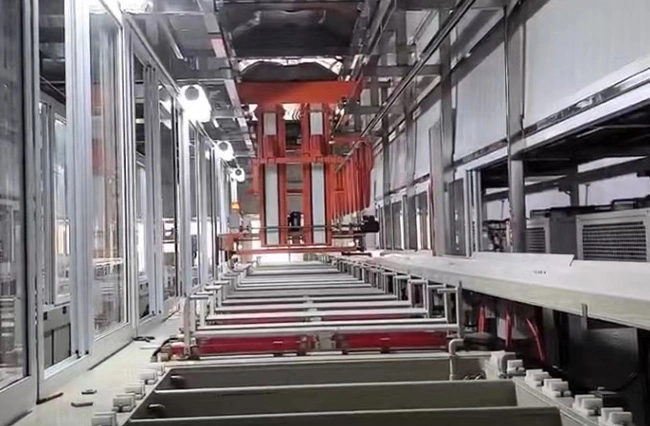

Automated Barrel Plating Line (Overhead Hoist)
The automated overhead hoist barrel plating line represents the pinnacle of high-volume surface treatment technology for bulk small components. This gantry-style plating system utilizes an elevated hoist mechanism to transport specialized barrels through precisely timed chemical sequences. By integrating heavy-duty structural engineering with intelligent automation, this automated plating cell ensures maximum throughput while maintaining rigorous industrial standards for zinc, nickel, or copper deposition.
This mass finishing equipment is extensively deployed in facilities requiring continuous, large-scale processing of:
- Industrial Fasteners: High-tensile bolts, precision screws, and nuts.
- Electronic Hardware: Connector shells, terminals, and micro-switch components.
- Automotive Parts: Small brackets, clips, and anti-corrosive engine hardware.
- Consumer Goods: Specialized fittings for appliances and decorative metal accessories.
This integrated electroplating solution consists of several high-performance modules:

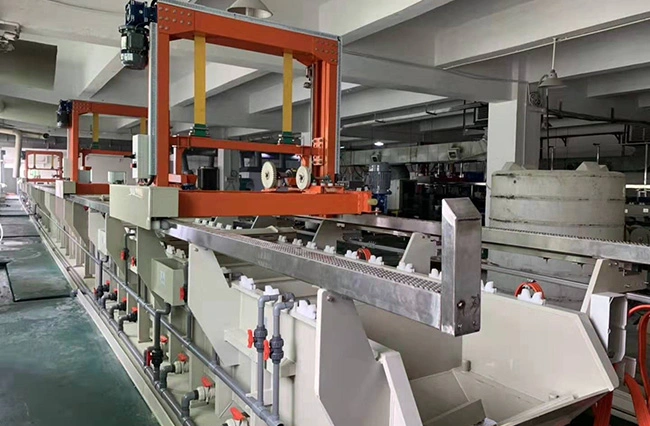

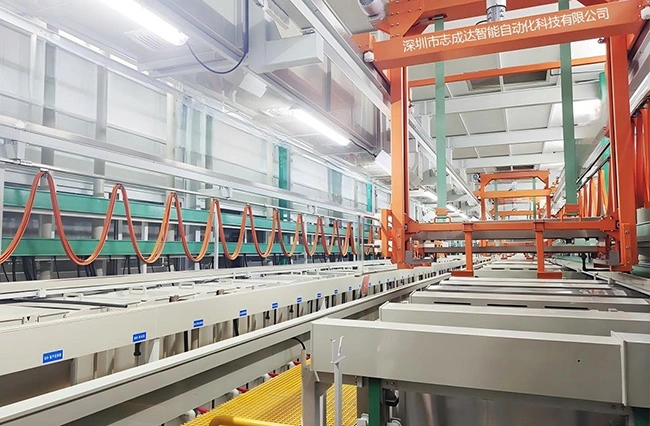

- Overhead Gantry Hoist: The primary transport engine that manages the vertical lifting and horizontal transfer of multiple barrels across the entire line.

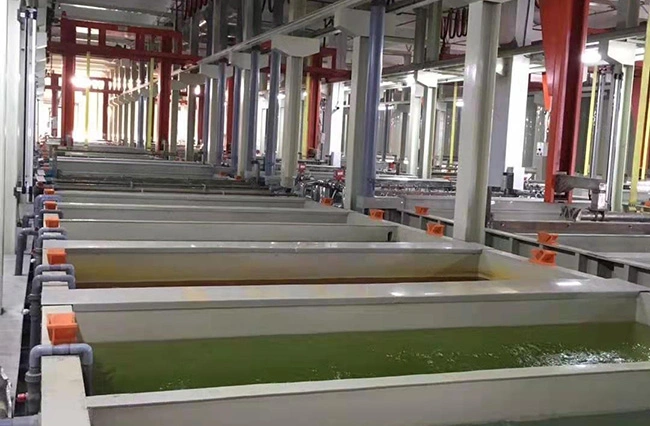

- Chemical Processing Tanks: Heavy-duty, acid-resistant units configured for pre-treatment, plating, and final rinsing.
- Advanced Control Architecture: A centralized PLC management system that orchestrates motion synchronization and process timing.
- Ancillary Hardware: Includes high-frequency rectifiers, chemical circulation pumps, and filtration units for electrolyte maintenance.
This unmanned plating station utilizes the gantry hoist to automatically execute barrel transfers, immersions, and process transitions according to pre-programmed recipes. During the plating phase, the barrels rotate at a constant velocity, ensuring that small workpieces tumble uniformly. This continuous movement allows for superior coating consistency and excellent electrical contact. By eliminating manual intervention, this automatic barrel system optimizes production stability, maximizes output, and significantly lowers operational labor costs.
