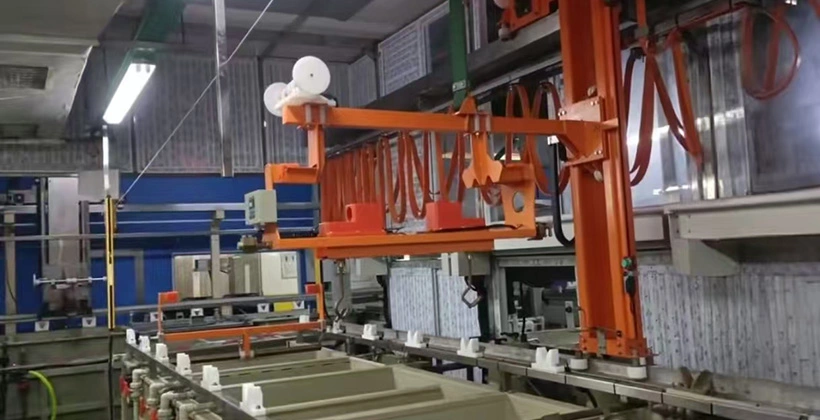

Automated Plating Line (Sidearm Hoist)
The automated plating line (sidearm hoist) is a sophisticated hybrid plating solution engineered to accommodate both small-part barrel plating and medium-part rack plating. This dual-purpose system offers exceptional operational flexibility, supporting both semi-automatic and fully automatic modes. It serves as a high-performance multi-functional finishing cell that allows manufacturers to switch between different processing methods within a single, integrated platform.
This versatile plating architecture is integrated with high-precision core modules:
- Sidearm Motion Hoist: A high-flexibility transport mechanism designed for rapid position switching.
- Multi-Functional Processing Tanks: Adaptive tank units compatible with various electrolyte environments.
- Integrated Hardware: Includes specialized plating barrels for bulk small parts and conductive racks for individual component mounting.
- Control & Power: Features a centralized PLC management system, high-frequency rectifiers, and chemical filtration-circulation units.
This flexible electroplating station utilizes the cantilever hoist to seamlessly switch between barrel and rack configurations according to production requirements. The robotic arm automatically executes the lifting, rotating, and horizontal transfer of workpieces through various chemical stages. This intelligent process management ensures smooth transitions between different finishing recipes and optimized cycle times.
This economical hybrid electroplating equipment is perfectly suited for several key manufacturing environments:
- Hybrid Batch Processing: Simultaneously meets the mass-volume needs of small hardware (barrel) and the precision requirements of medium-sized components (rack).
- Multi-Variety Production: Ideal for facilities handling a diverse range of products in small-to-medium batches.
- Small-to-Medium Facilities: A high-value, cost-effective finishing choice for workshops looking to maximize their processing capabilities with a limited footprint.
