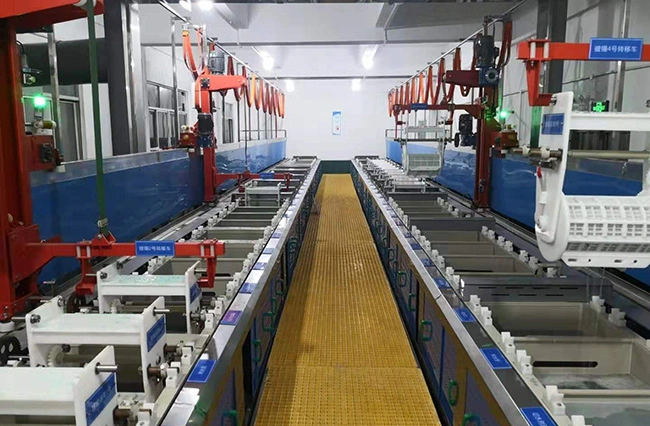

Automated Barrel Plating Line (Sidearm Hoist)
The automated barrel plating line (sidearm hoist) is a specialized surface finishing solution driven by a precise cantilever mechanical structure. This sidearm hoist barrel system is specifically engineered for the high-efficiency coating of small, batch-produced, and easily tumbled metal workpieces. By utilizing rotating barrels to carry components through multiple chemical stages, this automatic batch finishing station delivers superior corrosion resistance, decorative aesthetics, and functional plating layers for industrial hardware.
This compact plating unit integrates several core functional modules to ensure seamless operation:

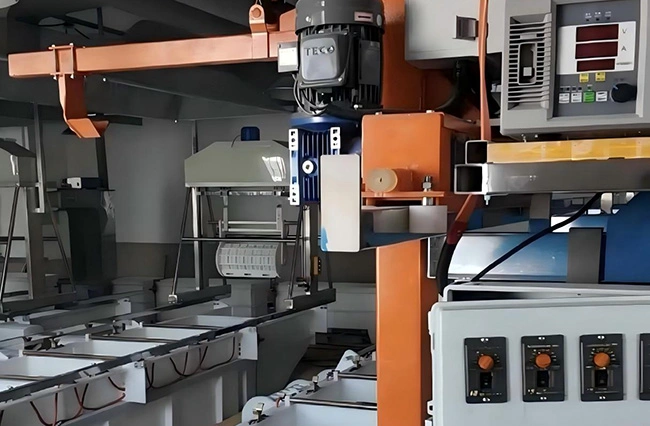

- Sidearm Motion Hoist: The primary transport mechanism that executes horizontal and vertical movements.
- Chemical Processing Tanks: Corrosion-resistant units tailored for diverse electrolyte environments.

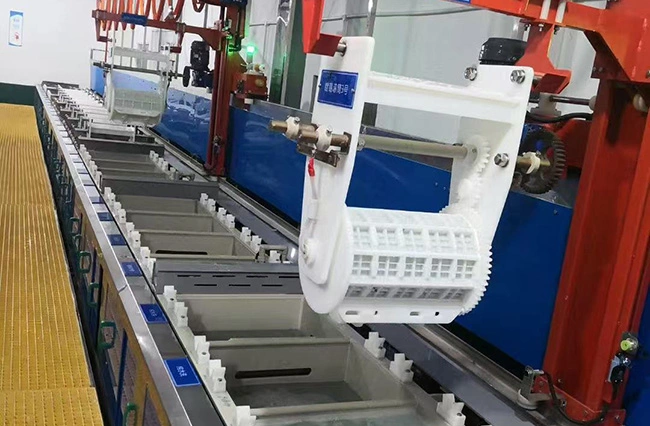

- Industrial Plating Barrels: Precision barrels designed for optimal tumbling and current distribution.
- Auxiliary Support Systems: Includes advanced temperature control, agitation modules, filtration-circulation systems, and high-conductivity electrical systems.
- PLC Electrical Control: A centralized intelligence module that manages motion logic and process parameters.
This integrated plating solution operates through a rigorous automated sequence:
Systematic loading of workpieces into the barrels.
Surface preparation including degreasing and pickling.
Precision deposition of metal or alloy layers.
Thorough rinsing and final drying to ensure surface quality.
Automated or manual collection of the finished products.
This versatile finishing equipment is ideally suited for the mass-volume electroplating of small, lightweight, and easily tumbled metal components. It is a preferred choice for precision electronics, small hardware fasteners, and decorative accessories where spatial efficiency and consistent coating quality are paramount.
