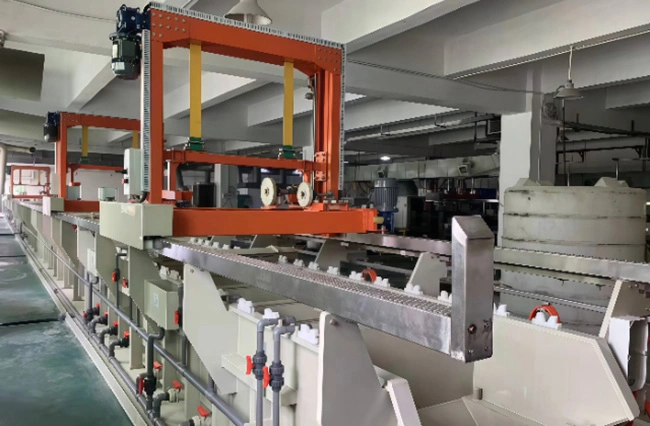

Semi-Auto Rack Plating Line

The semi-automatic rack plating line is a core piece of equipment in the electroplating industry that balances automated efficiency with manual flexibility. Positioned between manual and fully automatic systems, this line features a hoist that travels along guide rails, transporting workpieces to the plating tanks. Operators control the hoist via manual push-buttons. This setup significantly reduces manual labor intensity while preserving the flexibility for real-time process adjustments, making it an optimal solution for small-to-medium batch production across multiple product varieties. With its simplified operation, a single worker can manage the entire line, perfectly aligning with the production rhythm of small-to-medium workshops.

The electroplating line is primarily used for the surface treatment of small, irregularly shaped, and batch-produced metal parts, supporting processes such as gold, silver, nickel, copper, tin, and plastic plating. It is widely applied in the production of electronic components, hardware fasteners, automotive spare parts, and jewelry. Due to its economical nature and compact footprint, this semi-auto surface finishing equipment is highly suitable for businesses with limited investment scales or restricted floor space.

The entire process is fully automated to minimize manual intervention:

The production line consists of several essential modules:

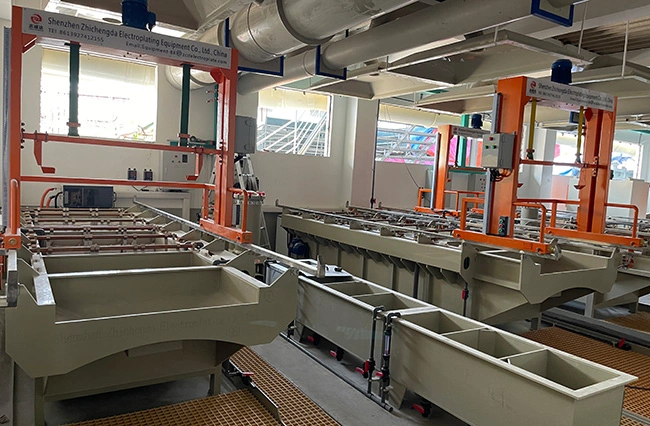

• Semi-Automatic Hoist: The primary transport mechanism moving along the guide rails.
• Acid and Alkali Resistant Tanks: Specifically engineered for rack plating operations.
• Rack Conductive Components: Ensuring stable electrical contact for the workpieces.
• Auxiliary Equipment: Includes a simplified electronic control system, rectifiers, filtration units, and other supporting devices.

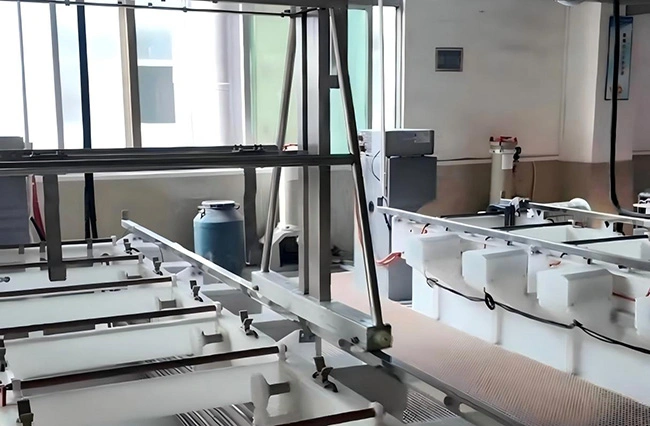

• Simplified Infrastructure: Eliminates the need for complex overhead tracks or heavy-duty hoists; the system moves along simple guide rails mounted above the tanks.
• Power-Assisted Lifting: Equipped with a motorized lifting hook. While the hoist is moved horizontally by the operator, the lifting and lowering of workpieces into and out of the tanks are automated via button control, eliminating the need for manual heavy lifting.
